Outer layer: Pebax/PA/TPU
Intermediate layer: flat or round wire, stainless steel/nickel titanium wire/fiber wire
Inner layer: PTFE \ Pebax \ PI \ PA \ TPU
< ...
Inner diameter = 0.432 mm / 0.533 mm / 0.559 mm / 0.635 mm, etc.
Proximal OD (Outer Diameter) = 2.95 F
Distal OD (Outer Diameter) = 2.6 F
Overall lengt ...
Customized according to customer requirements
...
Customized according to customer requirements
...
Customized according to customer requirements
...

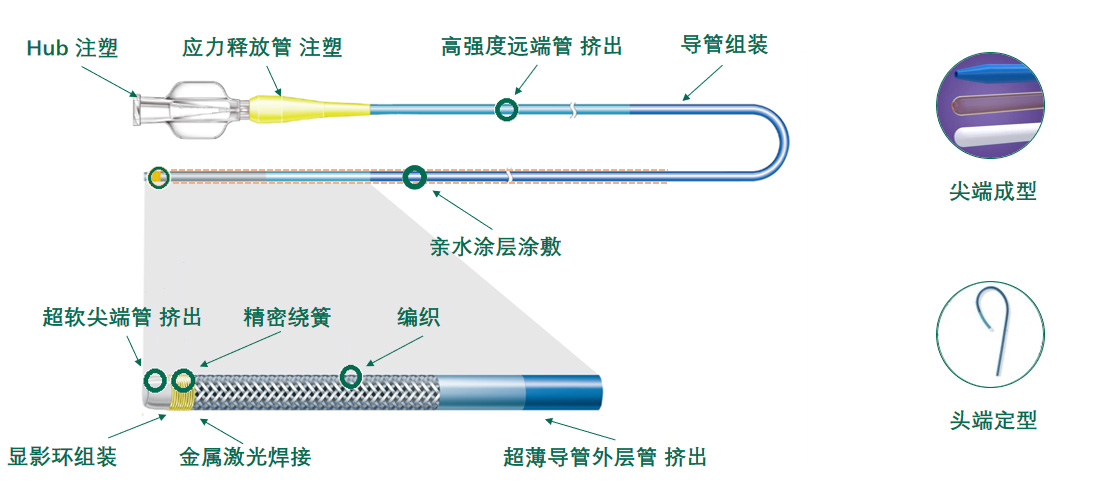

CirculusTec supports the production of most types of catheter bodies available on the market, including multi-layer catheters reinforced through braiding or coil winding. Our capabilities also encompass processes such as tip forming, shaping, injection molding, and coating.
OBTAIN SAMPLES

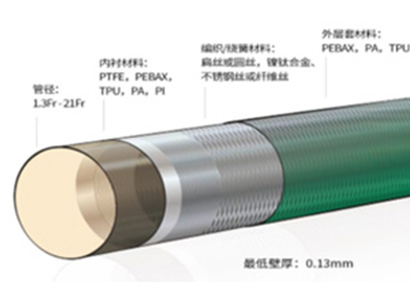

Product performance
● Lining material: PTFE, PEBAX, TPU, PA, PI
● Outer sheath material: PEBAX, Nylon, TPU
● Braiding/winding spring material: Flat or round wire, nickel-titanium alloy, stainless steel wire or fiber wire
● Pipe diameter: 1.3 Fr - 21 Fr
● Minimum wall thickness: The 0.13 mm
Product features
● Size/color/material/hardness can be customized
● A variety of woven structure densities to meet the requirements of different end products
● Supports post-processing, including coating, tip forming, bonding, tapering, bending, drilling and flanging
Product Application
● Cardiovascular intervention: braided tubes are used to make catheters in cardiovascular intervention, because of their flexibility and biocompatibility through complex blood vessels, to reach the disease for diagnosis and treatment; In heart surgery, it AIDS in guiding instruments, delivering drugs or as a support structure.
● Digestive intervention: In digestive tract treatment, braided tubes can be used to make endoscope attachments or catheters that can pass smoothly through the digestive tract, reducing pain and discomfort for the patient.
● Nerve intervention: When dealing with intracranial vascular diseases, the braided tube's small diameter and good passability enable the braided tube to safely enter intracranial blood vessels for drug delivery, angioplasty and other operations.
